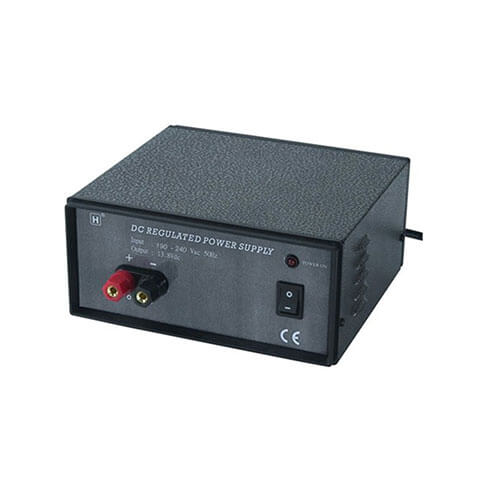

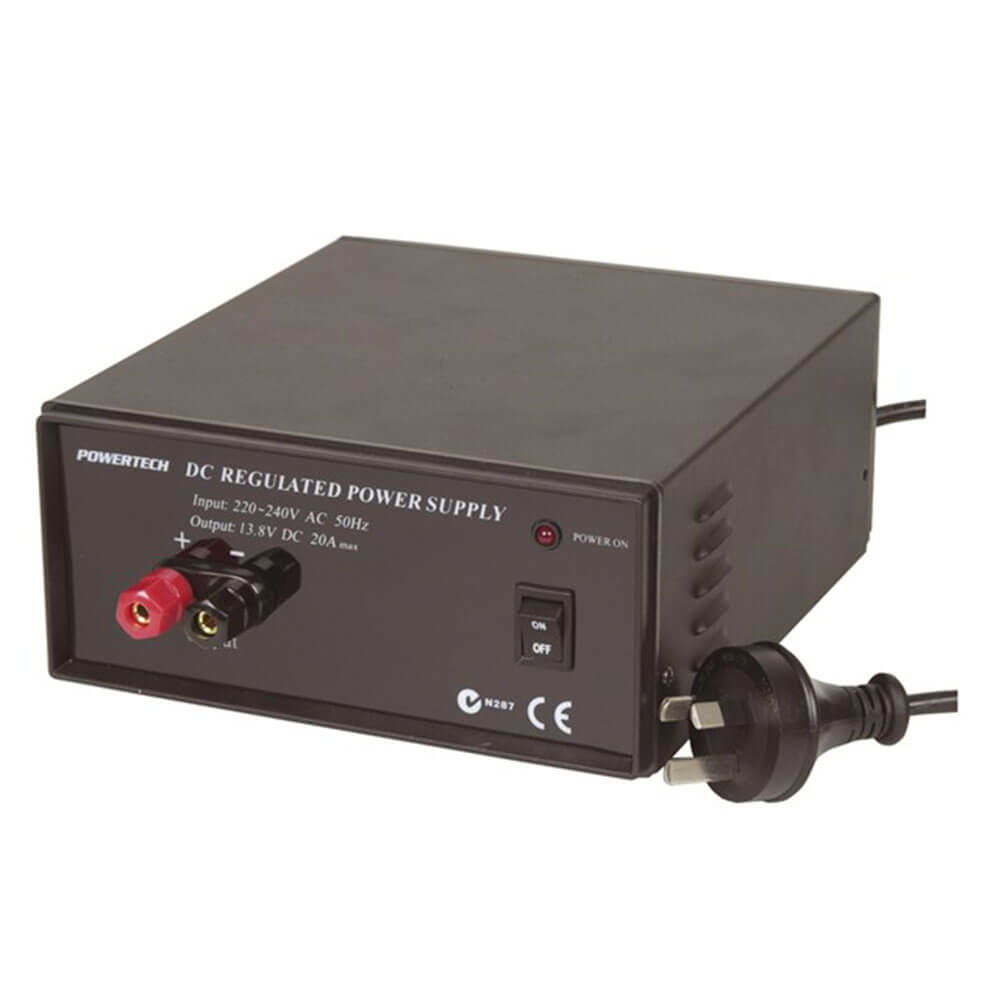

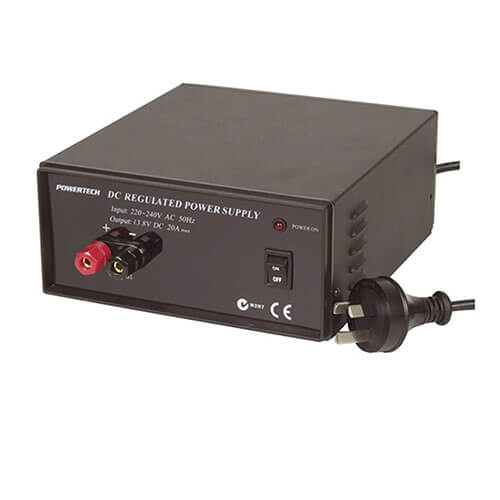

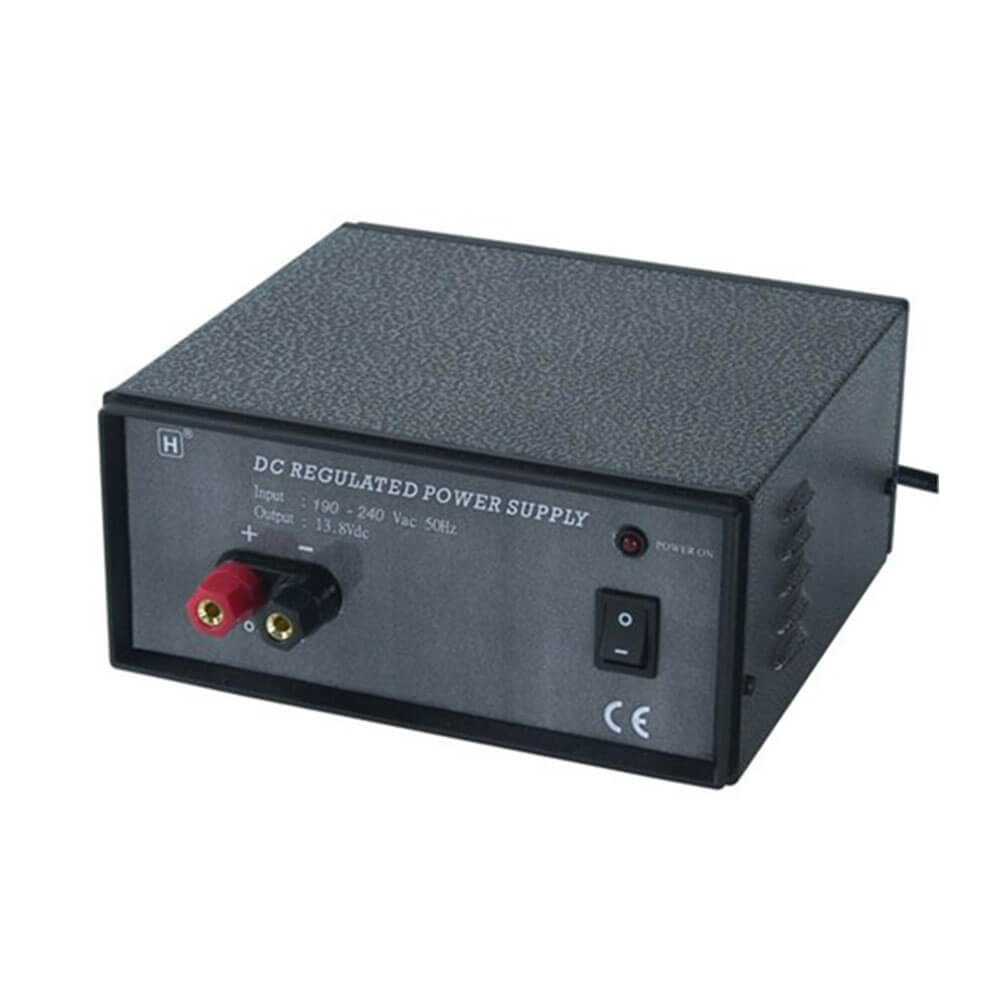

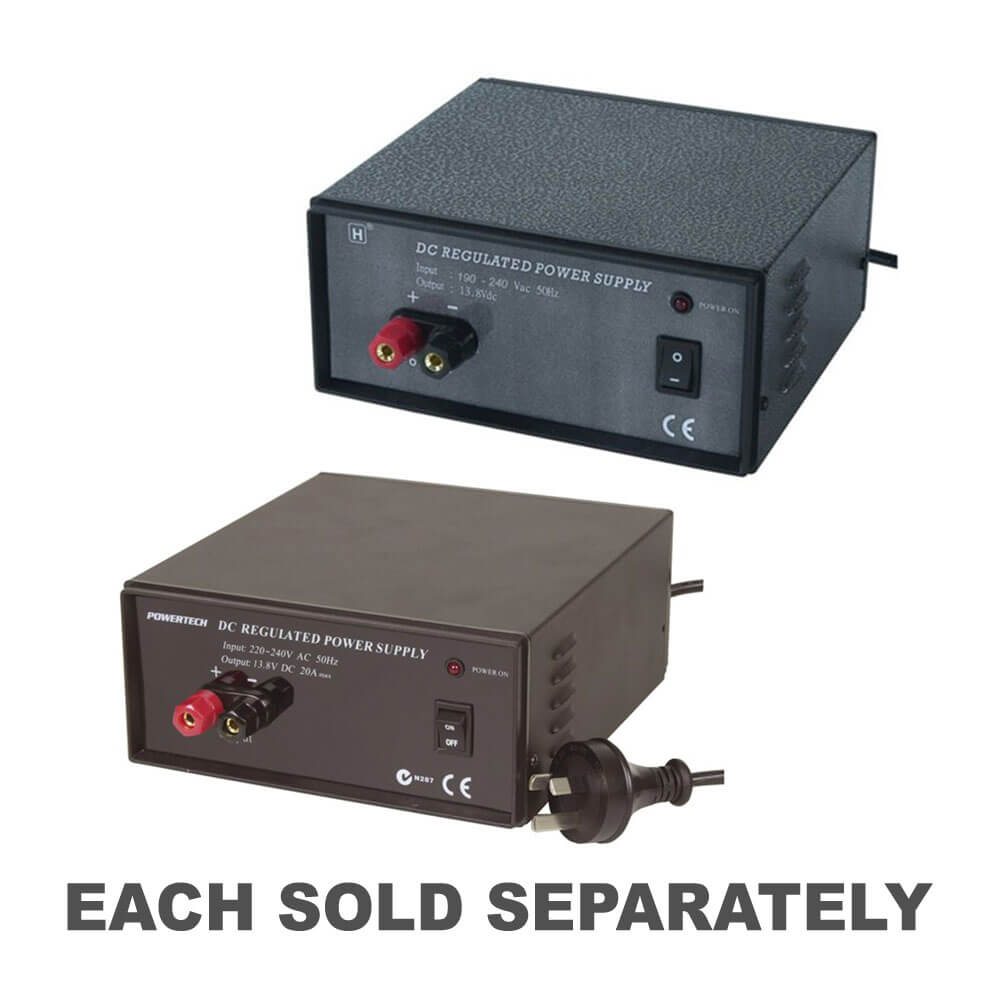

Switchmode Lab Bench Power Supply (13.8VDC)

High current general workshop power supply for equipment, component testing, etc. Ideal for 12V amateur transceivers, linear amps and high powered car stereo bench testing. Internal cooling fans assist cooling at higher temperatures.

Features:

• Banana socket style binding post output
• LED power on indication
• Rear mounted M205 fuse

Product Specifications

• AC Voltage rating : 240.0V
• AC Frequency : 50.0Hz
• DC current rating : 20.0A
• DC Voltage : 13.8V
• Length : 170.0mm
• Width : 190.0mm
• Height : 85.0mm
• Mains Voltage Range : 190.0V, 240.0V
• Frequency : 50.0Hz
• Rated for AU Mains : true
• Rated for US Mains : false
• Mains Item connection : Hard Wired
• Mains lead included : true
• Type of Power Supply : Laboratory
• Regulation Type : SMPS
• Voltage Display : false
• Current Display : false
• Output Connection : Banana 4mm (standard), Binding Post Terminals
• Number of Outputs : 1.0pc
