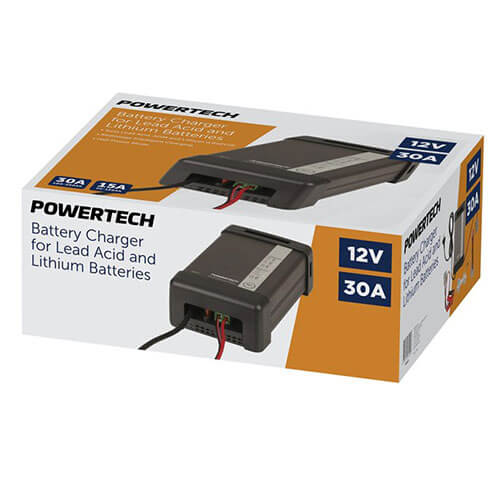

Multi-Stage Btry Charger Lithium & Lead Acid Batt (12V 30A)

Charger for lead acid and lithium batteries that can operate with or without a load.

This professional charger intelligently charges 12V Lead Acid, AGM and Lithium (LiFePO4) batteries from 50Ah to 300Ah, with (rated output of load should be less than that of charger) or without load. A 5-stage charge mode for Lead Acid batteries includes Soft, Bulk, Absorption, Float and Standby, with Refresh and Equaliser options to keep your Lead Acid battery in peak condition. A half power mode suits batteries under 100Ah and a special algorithm effectively charges LiFePO4 batteries using Bulk and Absorption modes.

Just one button is all that is needed to operate the charger, with 7 panel mount LEDs indicating the battery selection and charging status. The robust and durable enclosure features a built-in thermostatically controlled cooling fan, which can be set to sleep mode for 8 hours so not to disturb you at night. A host of safety protection features include short circuit protection, self-recoverable over temperature protection, and self-recoverable reverse polarity (fused). Supplied with three charging cables terminated to 50A Anderson, large battery clips and eye terminals.

Charge Stages:

• Soft-Start
• Bulk
• Absorption
• Float
• Standby

Features:

• Led display
• Multi-stage charging
• Power supply mode
• Battery Temperature sensor
• Equalization and soft start
• Short Circuit protection
• Reverse polarity protection
• Over temperature protection with self-recovery
• Suits batteries 50-300Ah

Specifications:

• No load current: ?120mA
• Output Voltage:
• Lead: 14.4V (Absorption), 13.6V (Float)
• AGM: 14.7V (Absorption), 13.6V (Float)
• LiFePO4: 14.4 (Absorption), N/A (Float)
• Recycle Day: 7 days
• Max Output Charge current: 30A
• Recommended Battery capacity: 100-300Ah @ 30A, 50-150Ah @ 15A

Product Specifications

• Length : 223.0mm
• Width : 135.0mm
• Height : 73.0mm
• Weight : 1.8kg
• Mains Voltage Range : 190.0V, 260.0V
• Frequency : 50.0Hz
• Rated for AU Mains : true
• Type of Batteries : Lead Acid, Lithium Ferrous Phosphate (LiFePO4), Lithium Ion
• Charger Output Current : 30.0A
• Controller Type : Multi-Stage
• Reverse Polarity Protection : true
• Output Connection : Screw Terminal
• Number of Outputs : 1.0pc
• Efficiency : 92.0%
