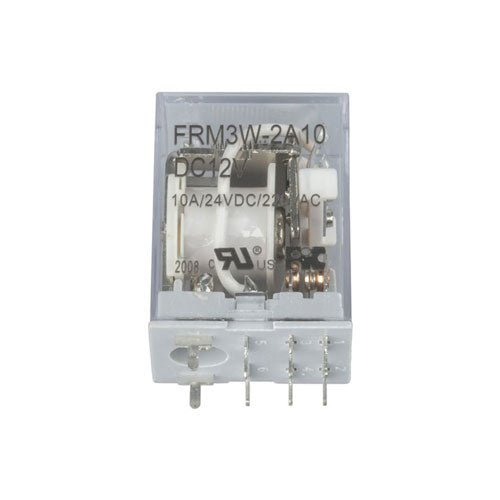

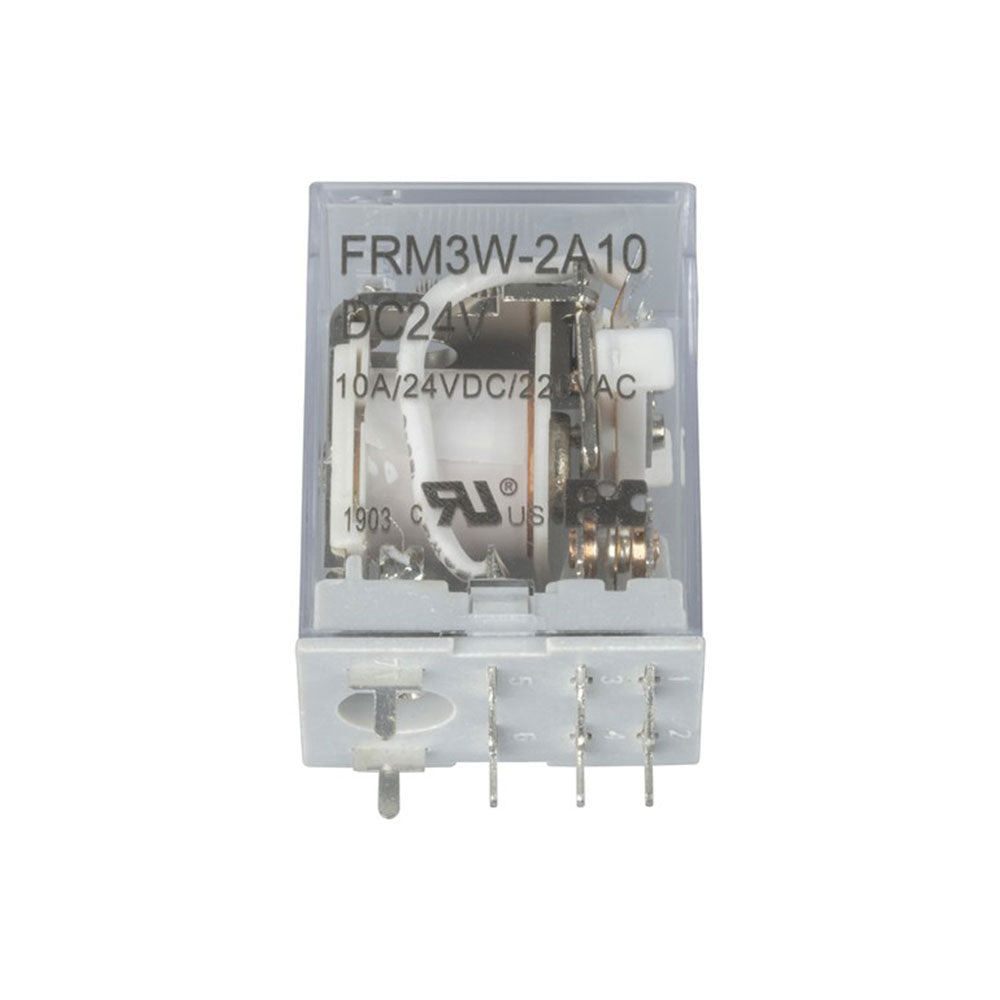

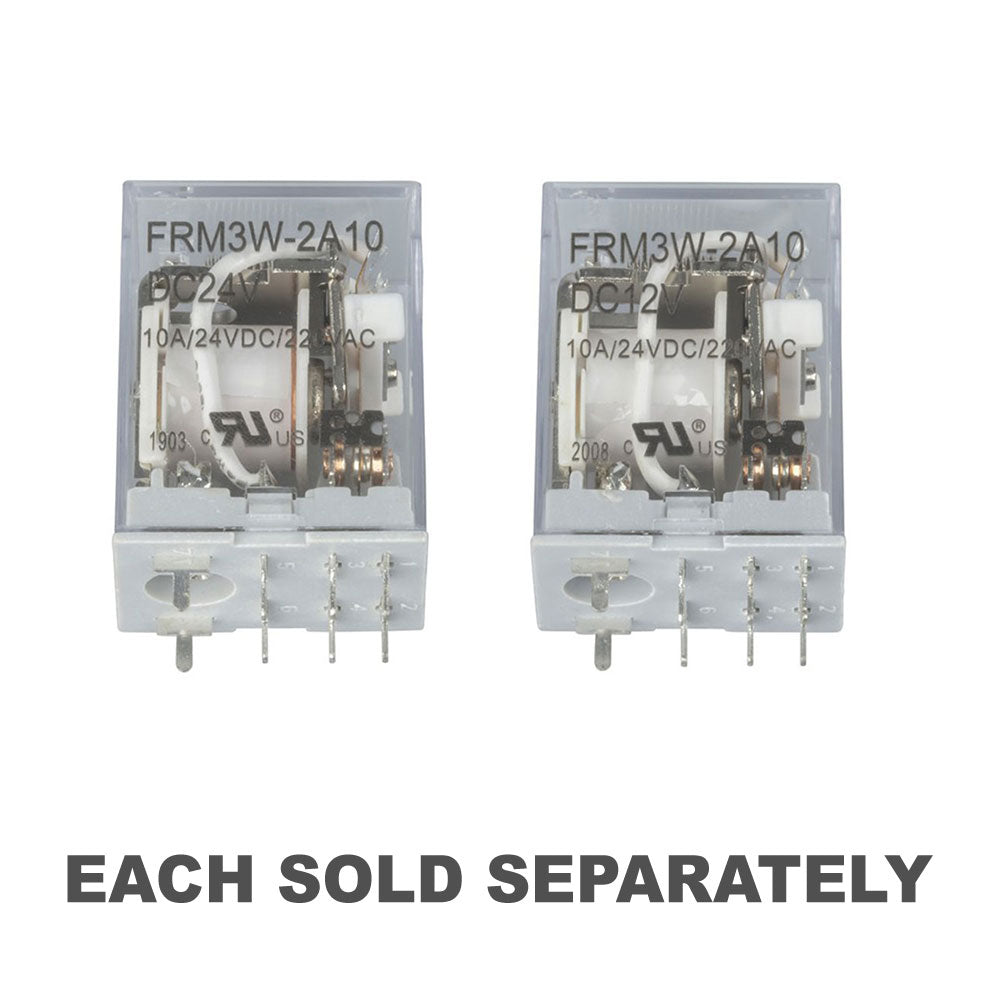

DPDT Relay 10A 240VAC/24VDC Contacts
DPDT Relay 10A 240VAC/24VDC Contacts
DPDT Relay 10A 240VAC/24VDC Contacts
DPDT Relay 10A 240VAC/24VDC Contacts
DPDT Relay 10A 240VAC/24VDC Contacts
Roll over image to zoom in Click on image to zoom
DPDT Relay 10A 240VAC/24VDC ContactsDPDT Relay 10A 240VAC/24VDC ContactsDPDT Relay 10A 240VAC/24VDC ContactsDPDT Relay 10A 240VAC/24VDC ContactsDPDT Relay 10A 240VAC/24VDC Contacts

DPDT Relay 10A 240VAC/24VDC Contacts

JaycarSKU: 198761

    • Device Type : Cradle Mounting Relay
    • Input : DC
    • Contact format : DPDT
    • Nominal Voltage : 24V
    • Coil Resistance : 650Ω
    • Coil Current : 37mA
    • AC Contact Voltage : 240V
    • AC Switching Current (Opening) : 10A
    • DC Contact Voltage : 24V
    • DC Switching Current (Opening) : 10A
    • Operation Time : 25ms
    • Length : 35mm
    • Width : 21.2mm
    • Height : 27.5mm
    • DC Voltage : 24V
    • DC Current Draw : 37mA
    • Mounting Method : Cradle/Socket MountPCB

Price:
$30.99
Stock:
In stock

GWP Gift with Purchase

Buy More Save More!

LatestBuy Sale Offers!

Payment & Security

American Express Apple Pay Bancontact Google Pay iDEAL Wero Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle it can also be mounted directly into a PCB. Operational life: 20 million cycles


Product Specifications

  • Device Type : Cradle Mounting Relay
  • Input : DC
  • Contact format : DPDT
  • Nominal Voltage : 24V
  • Coil Resistance : 650Ω
  • Coil Current : 37mA
  • AC Contact Voltage : 240V
  • AC Switching Current (Opening) : 10A
  • DC Contact Voltage : 24V
  • DC Switching Current (Opening) : 10A
  • Operation Time : 25ms
  • Length : 35mm
  • Width : 21.2mm
  • Height : 27.5mm
  • DC Voltage : 24V
  • DC Current Draw : 37mA
  • Mounting Method : Cradle/Socket MountPCB

Length : 2.6 cm Width : 2 cm
Height : 4 cm
