Panel Mount Thermal Circuit Breaker 15A
Roll over image to zoom in Click on image to zoom
Panel Mount Thermal Circuit Breaker 15A

Panel Mount Thermal Circuit Breaker 15A

JaycarSKU: 198659

    • Hold Current: 100% load indefinitely
    • Trip current:
    • Within 1 hour at 135% load
    • Within 1 min at 200% load
    • Contact Resistance: 0.16 ohms

Price:
$31.95
Stock:
In stock

Buy More Save More!

LatestBuy Sale Offers!

Description

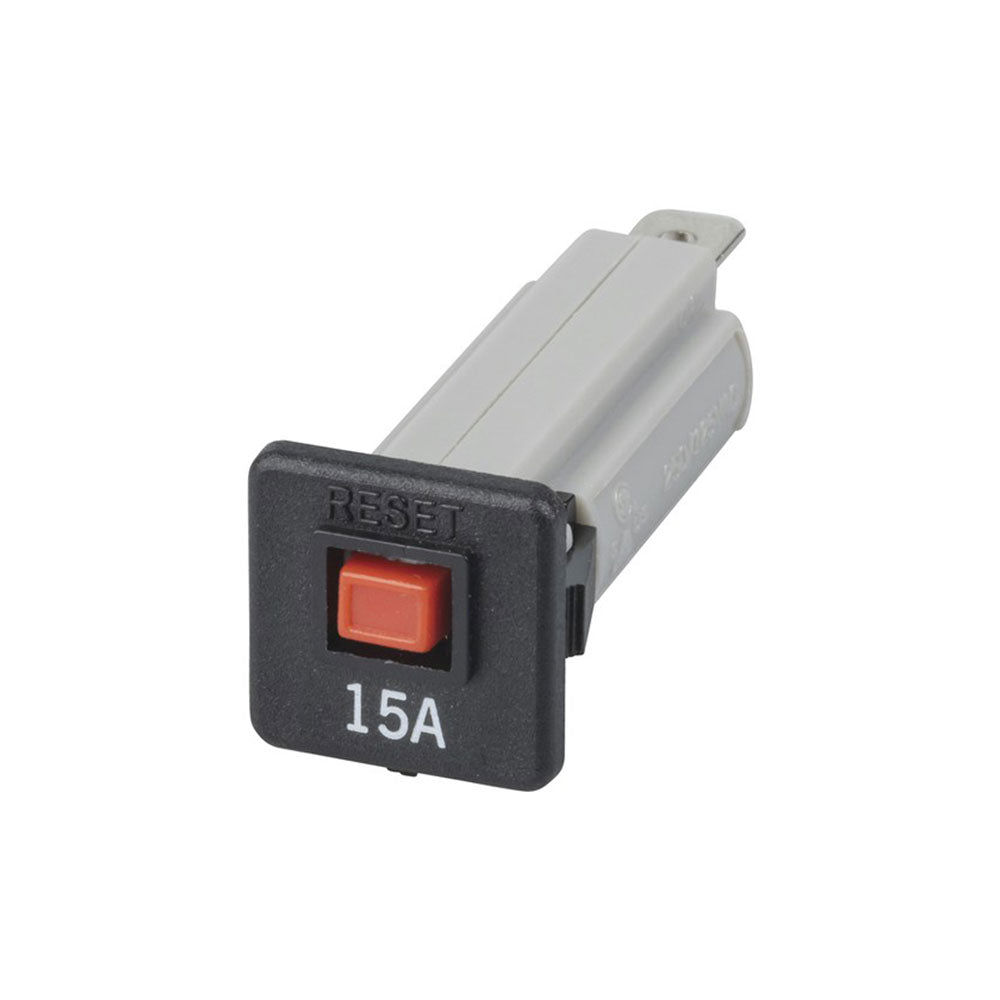

These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button. When tripped, the red button extends and to reset simply push button back in (once fault has been cleared). It's slow response time ideal for inductive/reactive loads. IEC 934 TYPE R/TO.


Product Specifications

  • Hold Current: 100% load indefinitely
  • Trip current:
  • Within 1 hour at 135% load
  • Within 1 min at 200% load
  • Contact Resistance: 0.16 ohms
Length : 5.2 cm Width : 2 cm
Height : 2 cm
